Menzel Heavy Duty Industrial DC Motors Factory
German Engineering Since 1927

Industrial DC Motors | 20 kW to 2,000 kW & 160 V to 1,000 V

Robust direct current motors for worldwide industrial applications — compact modular designs, precise speed control, and maximum operational reliability.

High-Performance Drive Solutions

Heavy-Duty Industrial DC Motors Built to EN & IEC Standards

Direct current technology continues to offer outstanding efficiency, precise speed regulation, and high overload capability for continuous industrial operation. Designed and manufactured in Germany according to IEC 60034 and VDE standards, Menzel direct current motors engineered for industrial duty deliver long operational service life even in extreme environments.

Our modular MEBGVF series ensures flexible integration. Whether you require a standard frame drive, exact mechanical replication of an obsolete motor, or custom shaft and flange adaptations, our Berlin engineering facility delivers custom solutions in short reaction times.

Power Range
20 kW – 2,000 kW
Voltage Range
160 V – 1,000 V
Frame Size
Up to 800 mm
Protection & Cooling
IP23–IP55 / IC06–IC86W
Engineering Benefits

MENZEL DC Motors — Engineering Advantages at a Glance

Engineered for extreme torque dynamics, serviceability, and minimal downtime across global industrial plants.

High Operational Safety

Fully laminated magnetic circuit ensures high dynamic load capability, smooth commutating performance, and extended overload capacity.

Long Carbon Brush Lifespan

Optimized commutator design and premium brush grade selection guarantee minimal wear and extended maintenance intervals.

Compact Mechanical Footprint

High power density allows optimal space utilization, enabling high output power within small installation dimensions.

Serviceable Modular Construction

Accessible brush inspection doors, replaceable filter elements, and removable covers ensure rapid field maintenance.

Wide Speed Control Range

Delivers constant nominal torque from low operating speeds up to field weakening speed ranges with excellent dynamic response.

Low Noise & Vibration Level

Precision dynamic rotor balancing and optimized cooling air ducts ensure quiet operation compliant with ISO vibration limits.

Technical Adaptability

Modular Design Options & Electrical Configurations

Comprehensive customization options to meet specific mounting, cooling, and environmental requirements.

Series MEBGVF 100 to 250 are available in IM B35 (flange/foot) or IM B3 (foot mounting). Series MEBGVF 280 to 315 feature robust cast/welded steel IM B3 designs. Custom flange adapter rings, special shaft dimensions (tapered, cylindrical, double-ended), and non-standard mounting feet configurations are mechanically engineered to match legacy installations without foundation changes.
Standard units feature IP23 open-circuit ventilation with forced-cooling radial blowers (IC 06). For harsh ambient conditions, dust, or aggressive vapors, totally enclosed designs are configured as pipe-ventilated IP44 (IC 37), water-cooled air-to-water heat exchangers (IC 86W), or air-to-air heat exchangers (IC 666) up to protection class IP55.
To prevent thermal overload caused by clogged air filters or high duty cycles, drives are equipped with PTC thermistors in main and commutating pole windings. Optional PT100 temperature sensors, differential pressure switches on fan filter units, and bearing vibration sensors offer complete plant automation integration.
Drives come pre-engineered for standard EURO-flange B10 tacho mounting. We factory-integrate incremental rotary encoders, digital pulse generators, or analog DC tachometers according to your existing plant control system interfaces.
Industry Field Experience

Proven Worldwide Industrial Applications

Menzel direct current motors drive critical industrial equipment across heavy manufacturing sectors globally.

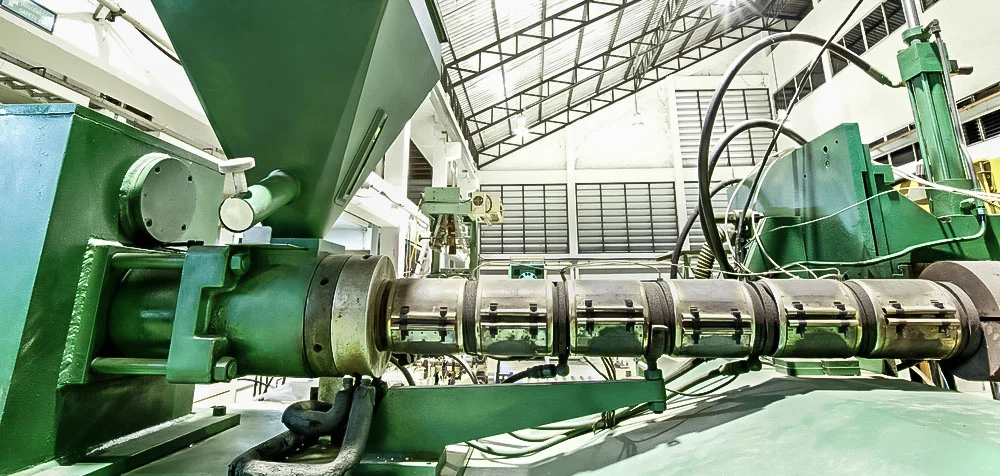

Extruder Drive DC Motors for Plastics & Rubber

Plastics & Extrusion Drives

High-torque continuous operation for plastics extruders, rubber mixers, calenders, and polymer processing machinery.

Steel Rolling Mill Heavy Duty DC Motor Drive

Steel & Rolling Mills

Reversible heavy-duty rolling mill drives, wire rod mills, tension reel drives, and heavy metal strip processing equipment.

Mining Winders and Cable Hoist DC Drives

Mining & Heavy Hoisting

Mine shaft winders, heavy crane winches, material handling conveyors, and heavy industrial bucket excavators.

Need a Custom Industrial DC Motor or Urgent Replacement?

We keep extensive stocks of DC motors and modular components for rapid customization. Technical advice and fast global response guaranteed.

Get a Quote
