Engineered for extreme duty cycles, precise mechanical coupling, maximum volumetric power density, and global energy efficiency compliance (IE3, IE4, IE5).

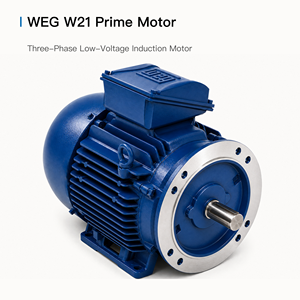

Designed for continuous duty (S1) in fan, pump, crane, and conveyor operations. Delivers maximum torque efficiency with reduced thermal losses and low vibration levels.

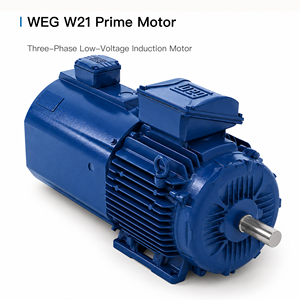

Foot-and-Flange mounted drive with forced ventilation cooling (IC416) for variable speed operations under frequency converter supply. Robust cast iron construction.

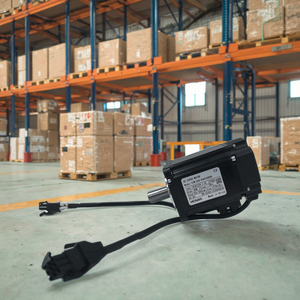

Ultra-compact, dynamic response flange-mounted AC motor specifically optimized for automated guided vehicles, mobile robotics, and automated warehouse logistics.

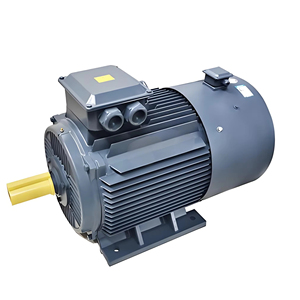

Rugged IP55 protection for process pumps, heavy industrial air compressors, and material handling systems. Provides structural rigidity under extreme shock loading.
Precision micro-flange synchronous drive operating at 250RPM / 500RPM. Designed for medical instrumentation, industrial timing, and micro-actuators.

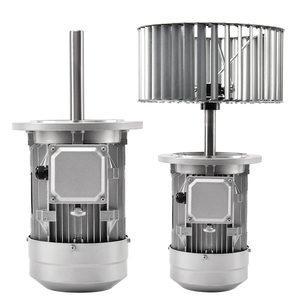

Features premium Class F 100% copper windings and an extended shaft output for direct coupling with high-temperature agitators, mixers, and industrial ovens.

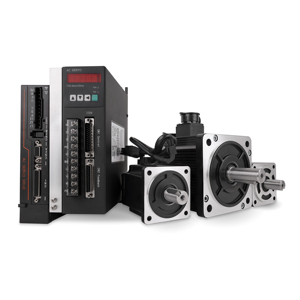

Engineered for CNC machining centers, high-speed automated spindles, and robotics. Built-in electromechanical holding brake and high-resolution encoder capability.

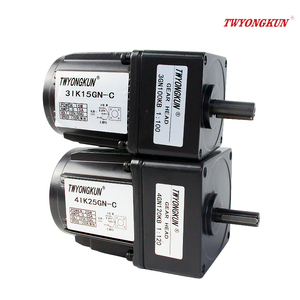

Compact asynchronous speed-reduction gear motor with 15mm output shaft and 5mm keyway. Ideal for packaging machinery, turn-tables, and automated feeders.
An authoritative technical analysis of flange mounting configurations (B5, B14, B35), mechanical shear stress distribution, alignment tolerances, and shaft axial load management.
Flange mounting provides direct mechanical coupling to gearboxes, pumps, and industrial machine frames, eliminating transmission belt deflection. IEC B5 flanges (FF / Large Flange) feature clearance pass-through holes for bolt fastening from the rear, making them ideal for heavy structural loads. In contrast, IEC B14 flanges (FT / Small Flange) utilize tapped blind holes directly on the motor end-shield face, catering to spatial constraints in OEM machinery.
For heavy industrial processing plants operating motors above 90 kW, pure flange mounting can induce excessive cantilever overhang moment on the mating flange interface. The IEC B35 (IM 2001) configuration combines structural foot mounting with a high-precision flange spigot. This dual-support mechanism dissipates radial torque shear forces into the foundation while retaining zero-misalignment direct coupling accuracy.
Vertical flange-mounted installations (V1/V3 configurations) require reinforced deep-groove ball bearings or angular contact roller bearings to withstand continuous axial gravity thrust and hydrodynamic backpressure. Precision machining of the flange spigot diameter (N-tolerance according to IEC 60072-1) guarantees runout accuracy within <0.05 mm, preventing shaft eccentricity, seal degradation, and bearing cage fatigue.
Industrial motor replacement often presents severe dimensional mismatches when existing equipment from legacy manufacturers becomes obsolete. OEM plants cannot afford complete structural redesigns of driven pumps, crushers, or compressors.
Our engineering facilities feature advanced CNC horizontal boring and milling centers capable of fabricating custom adapter flanges, oversized spigot rings, and non-standard bolt hole circles according to DIN, NEMA, ANSI, and Gost specifications. We ensure 100% mechanical drop-in equivalence without altering existing foundation footprints.
Comprehensive engineering matrix comparing electrical topologies, cooling classes (IC), protection degrees (IP), and typical heavy industrial duty cycles.
| Motor Classification | IEC Mounting Codes | Power Range | Cooling Method (IEC 60034-6) | Enclosure Class (IEC 60034-5) | Primary Industrial Applications |
|---|---|---|---|---|---|
| Three-Phase Asynchronous Induction | B5, B14, B35, V1, V3 | 0.75 kW – 25,000 kW | IC411 (TEFC) / IC416 (TEBC) | IP55 / IP56 / IP65 / IP66 | Pumps, Centrifugal Blowers, Conveyors, Compressors |
| Asynchronous Slip Ring (Wound Rotor) | B5, B35, V1 | 75 kW – 20,000 kW | IC611 (Air-to-Air) / IC81W (Water-Cooled) | IP55 / IP56 | Cement Mills, Ball Grinders, Heavy Mine Hoists, Shredders |
| Industrial Direct Current (DC Drives) | B35, B5 | 20 kW – 2,000 kW | IC06 (Forced Blower) / IC17 / IC37 | IP23 / IP54 | Steel Rolling Mills, Extruders, Wire Drawing, Calenders |
| High-Speed Spindle & AC Servos | B5 Custom Precision Flange | 0.4 kW – 25 kW | IC410 (Natural) / IC416 Forced Air | IP65 / IP67 (Oil Seal) | CNC Machining, Automated AGV Robotics, Precision Tooling |
| Hazardous Area (Ex ec / Ex p) Motors | B5, B35, Flange Mount | 1.1 kW – 15,000 kW | IC411 / IC611 / IC81W | IP66 / ATEX Zone 1, 2, 21, 22 | Oil & Gas Refineries, Petrochemical Pumps, Chemical Mixers |
Navigating global decarbonization policies, smart diagnostic integration, and next-generation inverter-duty insulation standards for B2B procurement decision-makers.
Global mandatory energy efficiency regulations (such as EU Commission Regulation 2019/1781) are accelerating the transition from standard IE3 motors to IE5 Ultra-Premium Efficiency classes. Procurement strategies are shifting toward Permanent Magnet (PM) and Synchronous Reluctance Motors (SynRM) in flange configurations, delivering full efficiency across variable speed loading curves and drastically reducing Total Cost of Ownership (TCO).
Smart manufacturing demands real-time health monitoring of critical drive assets. Modern flange-mounted motors are increasingly specified with integrated tri-axial MEMS vibration sensors, PT100 bearing/winding RTDs, and wireless telemetry (LoRaWAN/Bluetooth). Early detection of flange bolt loosening, bearing spalling, and shaft misalignment prevents catastrophic unscheduled plant standstills.
The proliferation of Silicon Carbide (SiC) and Gallium Nitride (GaN) Variable Frequency Drives produces ultra-fast switching frequencies (high dV/dt rates). This exposes motor windings to extreme voltage spikes and common-mode shaft voltages. Modern procurement guidelines dictate double-insulated bearings (ceramic hybrid or plasma-coated) and Class H VPI insulation systems to protect against fluting micro-arcing.
Circular economy principles are driving the market toward modular motor end-shield designs. Removable and field-interchangeable B5/B14 flange plates allow plant engineering teams to repurpose drive units across diverse machinery lines, drastically reducing spare parts inventory overhead and embodied carbon footprint.
With nearly a century of specialized electrical machinery manufacturing, Menzel delivers bespoke motor engineering, 25 MW full-load testing, and rapid emergency dispatch worldwide.
Menzel operates state-of-the-art manufacturing facilities certified to ISO 9001, ISO 14001, and ISO 45001 standards. Every custom flange-mounted motor undergoes comprehensive quality inspection and load testing in our in-house motor test field capable of testing high-voltage motors up to 25,000 kW and 13.8 kV.
In-depth expert answers addressing mechanical tolerances, flange standards, thermal dissipation, VFD integration, and replacement sourcing.
Our senior electrical engineering team is ready to analyze your technical datasheet, shaft load calculations, and environmental specifications to provide an optimal drive solution.
