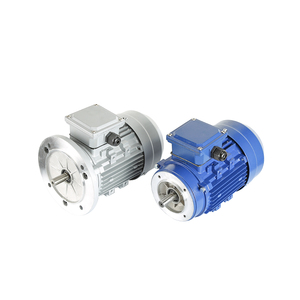

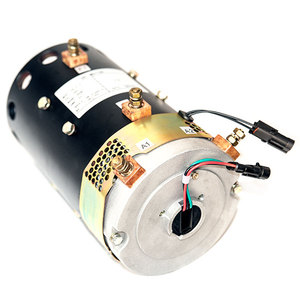

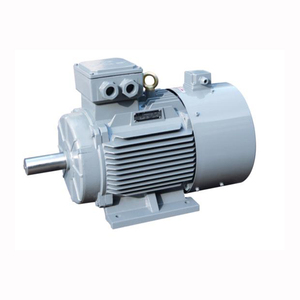

Explore our high-reliability OEM/ODM motor configurations engineered with Class H (180°C) thermal endurance, VPI insulation barriers, and precision-matched electrical ratings.
Understanding why top global OEMs specify Class H thermal insulation systems to eliminate unplanned downtime, withstand VFD voltage spikes, and extend operational lifespans under aggressive duty cycles.
Under IEC 60085 and IEEE standards, Class H insulation allows a maximum hot-spot operating temperature of 180°C (with a 125°C temperature rise over a 40°C ambient, plus a 15°C hot-spot safety margin). Utilizing high-grade mica paper, silicone resins, and polyimide films prevents thermal degradation during severe overloads.
Modern Variable Frequency Drives (VFDs) generate high peak voltages ($\text{d}V/\text{d}t$ transients) and partial discharge (PD) phenomena. Our Class H OEM stators incorporate inverter-duty enameled wire combined with solventless Vacuum Pressure Impregnation (VPI) to eliminate air voids and suppress electrical treeing.
Thermal life of electrical insulation doubles for every 10°C drop below its maximum thermal threshold. Designing a motor with a Class H insulation matrix operating at Class F temperature rises yields up to 400% longer winding life, substantially reducing total cost of ownership (TCO) in continuous processing plants.
| Insulation Thermal Class | Max Allowable Temp (IEC 60085) | Max Temp Rise (40°C Ambient) | Hot-Spot Margin | Typical Industrial Applications |
|---|---|---|---|---|
| Class B | 130°C | 80°C | 10°C | Standard commercial pumps, low-duty HVAC fans |
| Class F | 155°C | 105°C | 10°C | General industrial AC induction motors, standard conveyor drives |
| Class H (Our Standard) | 180°C | 125°C | 15°C | Heavy-duty steel mills, traction motors, mining fans, high-temp ovens, Ex-proof drives |
| Class C / H+ | >180°C (up to 220°C) | >140°C | 15°C - 20°C | Aerospace actuators, specialized traction, extreme marine environment drive systems |

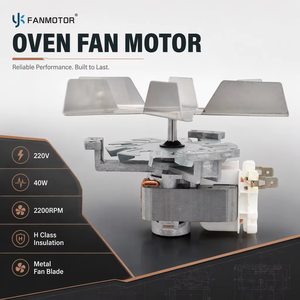

Tracing our lineage to German motor manufacturing established in 1927, we combine deep electromechanical heritage with state-of-the-art automated manufacturing. From high-voltage squirrel cage and slip-ring motors up to 25 MW to specialized fractional horsepower shaded-pole oven drives, our engineering team tailors every magnetic and mechanical parameter.
Global industrial procurement leaders are shifting from legacy baseline motor specifications toward forward-looking thermal management and energy efficiency strategies. Key market drivers include:
Energy regulations strictly mandate elevated efficiency metrics. Procurement teams are specifying Class H thermal capacity coupled with IE3 (Premium Efficiency) and IE4 (Super Premium) rotor-stator slot geometries to ensure low loss under continuous S1 duty cycles.

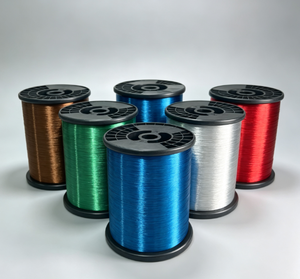

With silicon carbide (SiC) and GaN fast-switching VFDs becoming ubiquitous, motors experience extreme phase-to-phase voltage rise rates exceeding 10 kV/μs. Procurement specs now mandate dual-coated polyesterimide/polyamide-imide wire with Class H VPI resins.
Modern Class H motors are embedded with Pt100 RTD thermal sensors inside stator slots and bearing housings, alongside tri-axial vibration sensors. Real-time thermal telemetry alerts maintenance teams before insulation micro-cracking occurs.

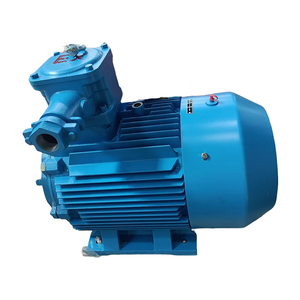

Buyers require unified motor platforms capable of rapid customization—converting standard IP55 units to IP65/IP67 corrosion-resistant finish, or adding Ex-d explosion-proof flame paths for oil & gas or chemical processing environments.
As industrial automation demands higher power density in smaller mechanical frames, stator insulation technology is undergoing rapid evolution. Here are the core technological breakthroughs shaping next-generation drives:
Incorporating inorganic nanoparticles (such as nano-silica, alumina, or organoclay) into Class H epoxy and silicone resin matrices dramatically improves thermal conductivity while enhancing breakdown voltage strength by over 35%. This enables faster heat dissipation from inner copper windings to the exterior frame.
Next-generation OEM motors are adopting modified polyimide-amide resins combined with aromatic polyamide paper (Nomex®) to push continuous temperature ratings past 200°C without sacrificing mechanical slot fill factors. This allows extreme short-term overload capacities (S2/S3 duty cycles).
Global environmental regulations push for zero VOC (Volatile Organic Compound) emission manufacturing. Modern Class H insulation dipping utilizes 100% solid solventless unsaturated polyester resins that deliver complete void elimination, high thermal endurance, and reduced carbon footprint during oven curing.
Our OEM/ODM Class H Insulation Motors power critical infrastructure and severe duty machinery around the globe:
Expert engineering answers to common technical queries regarding thermal margins, OEM customization, insulation testing, and operational reliability.
Whether you require standard 180°C Class H replacement motors, custom OEM shaded-pole oven drives, or large high-voltage mill motors up to 25 MW, our engineering team delivers fast quotations, complete technical CAD drawings, and certified manufacturing excellence.
