Industrial dredging and marine sediment extraction represent some of the most aggressive operating environments for electrical rotating machinery. Electric motors powering dredging pumps, cutterheads, and slurry agitation systems operate under severe dynamic mechanical stress, high abrasive slurry ingress risks, fluctuating torque profiles, and intense thermal dissipation bottlenecks. Standard off-the-shelf industrial electric motors fail prematurely when deployed in high-density silt mining or riverbed desliming projects.
As leading OEM Custom Dredging Pump Electric Motors Factories & Exporters, our manufacturing engineering approach synthesizes nearly a century of electromechanical innovation—tracing roots back to German industrial motor manufacturing standards since 1927. Whether engineering high-voltage squirrel cage induction motors up to 25 MW, specialized slip ring motors for extreme starting torque, or IP68 fully submersible electric slurry pump drives, our OEM solutions are engineered to exceed IEC/EN 60034 and IEEE 841 heavy-duty standards.
Information Gain Key Metric: Submersible slurry pump motors require a minimum safety factor of 1.5 to 2.0 times rated torque to withstand instantaneous blockage by boulders, compact gravel, and high specific gravity (SG 1.4 – 1.8) mineral concentrates without thermal breakdown.
The physical interaction between the pump impeller, mechanical seal chamber, and the motor’s internal rotor-stator assembly demands specialized structural engineering. Below is an architectural overview of critical performance parameters for electric motors used across marine, mining, and municipal dredging fleets:
| Motor Drive Category | Power Output (kW / MW) | Voltage Ranges | Cooling & Protection (IEC) | Primary Dredging Application |
|---|---|---|---|---|

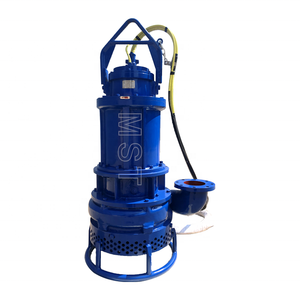

| High-Chrome Submersible Slurry Motors | 15 kW – 350 kW | 380V – 1150V (50/60Hz) | IP68 / Submerged Internal Fluid Jacket | Riverbed Silt, Gold Sand Mining, Marina Mud Removal |

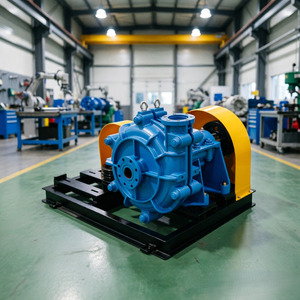

| Heavy Duty High-Pressure Centrifugal Drives | 55 kW – 1,200 kW | 400V – 6,600V | IC411 (TEFC) / IC611 (Air-to-Air) | Desliming Ore, Tailings Transport, Land Reclamation |

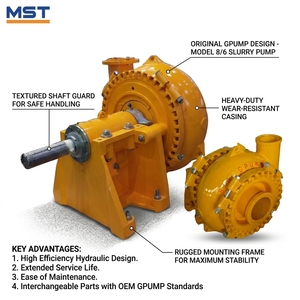

| Large Flow High-Voltage Dredge Motors | 1.5 MW – 25 MW | 3.3 kV – 13.8 kV | IC81W (Air-to-Water) / IC511 (Tube Cooled) | 12-36 Inch Sea Sand Mining, Cutter Suction Dredgers |
| Hazardous Area Dredge Drives (Ex-Proof) | 45 kW – 800 kW | 380V – 3,300V | Ex d / Ex p / Ex ec / IP67/IP68 | Chemical Sludge, Offshore Oil Silt, Explosive Gas Bays |
We manufacture specialized mounting flanges, reinforced dual-thrust bearing housings (SKF/FAG spherical roller bearings), and customized shaft extensions in high-tensile alloy steels (42CrMo4, Stainless 316L/Duplex) to drop seamlessly into existing cutter-suction dredges or excavator arm pump rigs.
Our electric stators utilize Class H non-hygroscopic insulation treated with double Vacuum Pressure Impregnation (VPI) using solventless synthetic resins. This guarantees 100% resistance against dielectric breakdown caused by condensation, saltwater ingress, or high ambient operating temperatures up to 180°C.
Submersible pump motors feature a triple mechanical seal arrangement (Silicon Carbide vs. Tungsten Carbide) with oil chamber isolation. Integrated leak detection probes and thermal PT100 sensors provide instant signal alerts to protect motor windings prior to liquid ingress.
The global dredging market is experiencing a profound transition driven by strict environmental regulations on carbon emissions, the escalation of offshore mega-reclamation projects, and the expansion of deep-sea sand mining. Modern dredging fleet operators are abandoning inefficient diesel-direct drives in favor of high-efficiency, VFD-controlled electric motors.
Traditional asynchronous squirrel cage motors are increasingly being augmented or replaced by Permanent Magnet Synchronous Motors (PMSM) and IE4/IE5 ultra-premium efficiency drives in cutter suction and trailing suction hopper dredgers (TSHD). PMSMs provide full torque capability across variable speed ranges without thermal derating, enabling dredging contractors to optimize pump speed dynamically based on slurry density and pipe transport distance. This delivers up to 18–25% fuel/energy savings per cubic meter of sediment dredged.

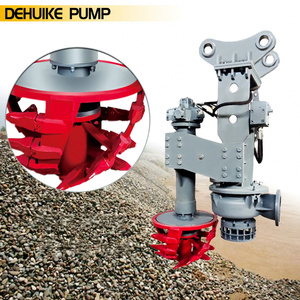

Sediment compaction in harbor bottoms and riverbeds often causes pump suction heads to starve or cavitate. Modern OEM factories are co-designing electric motors with lower mechanical shaft extensions driving heavy-duty high-chromium (Cr26/Cr28) alloy agitators. The electric motor shaft is engineered to absorb both the radial forces of the slurry impeller and the heavy impact shock loads of the agitator cutting through compacted clay and cobble formations.
With plant downtime costing upwards of tens of thousands of dollars per hour in offshore mining, dredging pump motors are evolving into intelligent edge nodes. Modern OEM motor factories integrate tri-axial vibration sensors, bearing temperature monitors, insulation resistance (Megohm) monitoring modules, and seal chamber moisture probes directly into the motor terminal box. Data streams continuously over Modbus/CANbus or wireless telemetry to dredge control rooms, alerting engineers to bearing spalling or seal degradation weeks before catastrophic failure occurs.

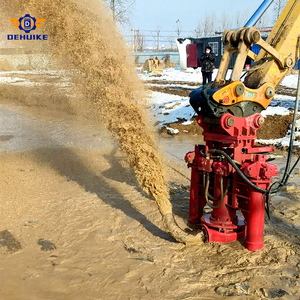

For compact submersible slurry pumps deployed on excavator arms or tight pontoon spaces, external fan cooling (IC411) is impossible. The industry is rapidly adopting closed-loop water jacket cooling (IC81W) surrounding the motor frame. The pumped medium itself or an isolated glycol loop absorbs motor thermal losses, allowing a 90kW or 200kW motor to fit within a frame size 30% smaller than conventional air-cooled drives.
Procurement directors and engineering teams at major dredging contractors (e.g., in Southeast Asia, Middle East, Europe, and South America) are altering their supply chain strategies. Key procurement shifts include:
Contractors are requesting standard modular motor frame sizes with interchangeable flange adapters. This allows a single spare OEM electric motor to serve multiple pump casing models across a fleet, reducing capital tied up in replacement inventory.
Unplanned motor burnouts during peak dredging seasons can cause severe project delay penalties. Buyers are partnering with factories maintaining massive semi-finished inventory (stator cores, cast iron frames, rotor shafts) capable of delivering custom-wound motors within 48 to 72 hours.
Procurement evaluation has shifted from initial purchase price (CAPEX) to TCO over a 5-year lifecycle. High-efficiency IE3/IE4 motors, superior VPI resin quality, and high-chrome agitator durability drastically cut energy bills and overhaul frequencies, yielding superior ROI.
Our manufacturing and export organization combines traditional engineering rigor with rapid, modern OEM fabrication capabilities. Rooted in German electrical machine manufacturing excellence operating since 1927, we specialize in high-voltage AC, slip ring, DC, and custom IP68 submersible electric motors when standard catalog products fail to meet complex project demands.
Dredging pump electric motors should be specified for continuous S1 duty cycle. However, when operating under variable slurry densities or frequent boulder jams, the motor must be thermally rated for S4 intermittent duty with frequent starting torque peaks without exceeding Class F/H temperature limits.
We utilize a multi-barrier sealing architecture comprising dual or triple independent silicon carbide mechanical seals, an oil-filled buffer chamber with built-in moisture sensor probes, a lip seal sand guard, and positive internal air/oil pressure buffering to prevent fine quartz sand and silt particles from entering the stator chamber.
Yes. All our custom OEM electric motors are engineered with VFD-rated inverter-duty insulation systems (dDV/dt filter compliant, insulated non-drive end bearings to prevent shaft currents and electrical discharge machining - EDM micro-pitting) ensuring smooth variable speed control from 0 up to 120% nominal RPM.
Absolutely. When existing dredging pump motors are obsolete or the original manufacturer is out of business, our engineering team reverse-engineers the mechanical footprint, shaft specs, mounting hole centers, and electrical parameters to build a 100% drop-in replica motor with modern VPI insulation efficiency.
For seawater sand mining and marine dredging, we utilize high-tensile ductile iron (QT500-7/GGG50), duplex stainless steel, or cast steel housings coated with heavy multi-coat marine epoxy paint systems rated for C5M corrosive salt-spray environments.
To get an exact quotation, please provide: Power rating (kW/HP), Operating Voltage & Frequency, Desired RPM/Pole count, Submersible depth (meters) or IP rating, Medium specific gravity (density), Pump mounting dimensions, and whether an integrated agitator or VFD drive is utilized.
Speak directly with our senior electrical drive engineers. Request full engineering datasheets, dimensional CAD drawings, and complete product catalogs tailored to your specific dredging project requirements.
