China Top Industrial Synchronous Motors Manufacturers & Exporter
Engineering High-Efficiency PMSM & High-Voltage Excitation Synchronous Drive Systems for Global Heavy Industry, HVAC, Automation, and Power Infrastructure
Featured Machinery & Industrial Motors
Industrial Synchronous Motor Portfolio
Explore our high-performance synchronous electric motor range—spanning compact micro-gear drives, servo positioners, high-torque PMSM fans, elevator door operators, up to 3150 kW high-voltage excitation motors.
Compact Permanent Magnet

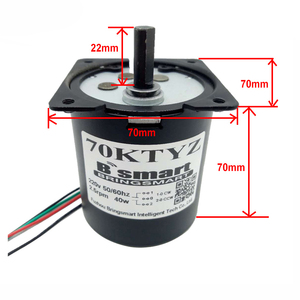

BringSmart 70KTYZ 220V Synchronous Electric Motor 40W Permanent Magnet AC Motor 2.5rpm-110rpm 16.3N.m CW/CCW
Technical Architecture of Industrial Synchronous Motors
Synchronous electric motors represent the apex of electromechanical energy conversion in modern industrial applications. Unlike asynchronous induction motors where rotor slip is mandatory to induce current, a synchronous motor operates at absolute synchronous speed, precisely locked to the supply frequency (\(n_s = 60f/p\)). In China's advanced industrial manufacturing ecosystem, synchronous motor engineering has evolved into two primary topologies: Permanent Magnet Synchronous Motors (PMSM) and Electrically Excited Synchronous Motors (EESM).
Information Gain Insight: Selecting between PMSM and Electrically Excited Synchronous Motors depends heavily on power scaling and field-weakening requirements. While PMSM achieves unmatched efficiency (IE5/IE6) in low to medium power ranges (up to 500 kW), large-scale high-voltage applications above 1,600 kW to 25,000 kW frequently employ excited synchronous designs to allow dynamic power factor regulation and reactive power compensation across heavy power grids.
Topological Comparison: PMSM vs. Brushless Excitation Motors
Permanent Magnet Synchronous (PMSM)
Rotor Construction: High-coercivity NdFeB (Neodymium-Iron-Boron) or Samarium-Cobalt permanent magnets mounted surface-wise (SPMSM) or interior-embedded (IPMSM).
Power Factor: High inherent power factor near unity (0.95 to 0.99 leading/lagging via VFD control).
Ideal Applications: HVAC fan systems, elevator door operators, high-precision industrial servos, extruders, and direct-drive mining conveyors.
Electrically Excited Synchronous (EESM)
Rotor Construction: Salient-pole or cylindrical rotor with dedicated field windings powered via brushless rotating exciters or slip-rings.
Excitation Control: Dynamic field current regulation enables active grid power factor correction (var control).
Power Rating: Scales from 1,000 kW up to 25 MW with high-voltage stator insulation (3.3 kV, 6.6 kV, 10 kV, 13.8 kV).
Ideal Applications: Ball mills, cement grinders, blast furnace blowers, large water pumps, and mine ventilation infrastructure.
Thermal Management & IEC Cooling Classifications
Industrial reliability is directly linked to stator winding thermal stress. Leading Chinese synchronous motor exporters adhere to strict IEC 60034-6 cooling designations and IEC 60034-5 protection standards. Depending on plant ambient conditions, custom cooling designs are implemented:
IC411 (TEFC - Totally Enclosed Fan Cooled): Standard self-ventilated external frame fan cooling for general industrial fan and pump applications.
IC611 (Air-to-Air Heat Exchanger): Enclosed dual-circuit system with top-mounted air-to-air heat exchanger, ideal for dusty mining or cement processing environments.
IC81W (Air-to-Water Cooled): High power-density design featuring closed-loop internal air circulation cooled by an integrated water-jacket heat exchanger. Reduces workplace acoustic noise below 78 dB(A).
IC01 (Open Drip-Proof / Force Ventilated): Maximum power extraction for clean room or filtered power station environments.
Insulation Systems & VPI Vacuum Pressure Impregnation
To withstand high dv/dt voltage spikes generated by modern pulse-width modulated (PWM) Variable Frequency Drives (VFDs), top-tier Chinese manufacturers employ Class H and Class F Vacuum Pressure Impregnation (VPI). Utilizing solventless epoxy resins and mica tape insulation, the VPI process eliminates microscopic air voids, guaranteeing corona-free performance up to 13.8 kV and extending operational lifespan beyond 30 years under severe continuous duty (S1).
Global Sourcing & Procurement Trends (2025–2030)
The global industrial drive market is undergoing a structural paradigm shift driven by decarbonization mandates, rising energy costs, and the rapid adoption of smart manufacturing networks. Global procurement directors are increasingly shifting sourcing strategies toward Chinese synchronous motor manufacturers due to significant advancements in direct-drive PMSM technology, rapid OEM customization, and competitive Total Cost of Ownership (TCO).
1. Transition from IE3/IE4 Induction Motors to IE5 Ultra-Premium PMSM
Electric motor systems account for over 70% of total electrical energy consumption in heavy manufacturing plants. Under global energy efficiency regulations (such as EU Stage 2 Regulation 2019/1781 and China National Standard GB 18613-2020), legacy asynchronous induction motors are being systematically replaced by IE5 permanent magnet synchronous motors. PMSM drives eliminate rotor electrical resistance losses, maintaining flat efficiency curves even at partial load conditions (25% to 120% nominal torque).
2. Direct-Drive Elimination of Mechanical Gearboxes
Traditional industrial drive trains utilize high-speed induction motors coupled to multi-stage mechanical gearboxes to drive low-speed, high-torque equipment (e.g., ball mills, agitators, cooling tower fans). Modern high-torque low-RPM PMSM designs enable direct coupling (Direct-Drive Technology). By eliminating gearboxes, industrial operators achieve:
System Efficiency Gain: 3% to 8% overall mechanical efficiency increase by eliminating gear mesh friction and oil bath resistance.
Maintenance Reduction: Total elimination of lubricating oil changes, gearbox seal failures, mechanical backlash, and periodic gear inspection shutdowns.
Footprint & Weight Optimization: Up to 40% reduction in installation envelope, simplifying civil engineering foundation costs.
3. Total Cost of Ownership (TCO) ROI Matrix
When evaluating industrial synchronous motors, initial capital expenditure (CAPEX) typically represents less than 5% of total lifecycle cost, whereas electrical power consumption (OPEX) accounts for over 90%. Below is a practical financial payback model comparing a 55 kW conventional induction motor with a China-manufactured IE5 Permanent Magnet Synchronous Motor operating 8,000 hours annually:
TCO ROI Case Study (55 kW Continuous Duty Application):
Legacy Standard Motor: Efficiency = 93.5% | Annual Power Consumption = 470,588 kWh
China Premium IE5 PMSM: Efficiency = 96.8% | Annual Power Consumption = 454,545 kWh
Annual Energy Savings: 16,043 kWh / year
Cost Savings (@ $0.12 / kWh): $1,925.16 USD annually per motor drive unit
Average CAPEX Payback Period: 8 to 14 months, followed by 20+ years of net operational savings.
China Industrial Synchronous Motor Manufacturing & OEM Advantages
China's industrial motor manufacturing sector has transformed from low-cost volume production into a high-precision, vertically integrated engineering powerhouse. Major manufacturing clusters located in Jiangsu, Zhejiang, Anhui, and Shandong provinces leverage complete localized supply chains—from rare-earth mining and magnet sintering to high-precision CNC machining, automated VPI insulation, and high-voltage full-load testing fields.
Core Engineering & Manufacturing Capabilities
Full-Load High-Voltage Testing Fields: Leading Chinese exporters maintain state-of-the-art motor test fields capable of performing load testing up to 25 MW and 13.8 kV in accordance with IEC 60034-2-1 standards. Tests include temperature rise measurement, vibration spectrum analysis (ISO 10816), partial discharge testing, and harmonic distortion verification.
Custom Drop-in Replacements: When legacy motors from European or American OEMs reach end-of-life or suffer catastrophic failure, Chinese engineering teams specialize in non-standard physical dimensions. Custom shaft extensions, special mounting flange dimensions, terminal box orientations, and foot-print matching are engineered to guarantee 100% mechanical interchangeability without modifying existing civil bases.
Hazardous Area Certifications: Full compliance with global explosion-proof standards including ATEX, IECEx, and CCCEx for Pressurized Ex p, Increased Safety Ex ec, and Dust Ignition Protection Ex tc environments.
Strict QA & International Compliance: Quality management systems certified to ISO 9001, ISO 14001, and ISO 45001, with products carrying CE, UL, CSA, and EAC certifications for seamless customs clearance worldwide.
Industrial Synchronous Motors Procurement FAQ
Below are authoritative technical answers addressing common engineering and procurement inquiries regarding Chinese synchronous motor imports, VFD integration, and field customization.
Q1 What is the main operational difference between PMSM and AC Servo Motors?
While both rely on synchronous permanent magnet technology, AC Servo Motors incorporate high-resolution feedback devices (absolute encoders or resolvers) for closed-loop motion control requiring high dynamic response, exact position positioning, and acceleration. General PMSM drives are optimized for continuous velocity efficiency (fans, pumps, extruders) and can operate via sensorless vector control (SVC) or V/f control.
Q2 Can permanent magnet synchronous motors start directly across the line (DOL)?
Standard PMSMs require a Variable Frequency Drive (VFD) to synchronize stator field rotation with the rotor during startup. However, Line-Start Permanent Magnet Motors (LSPMSM) feature an integrated rotor squirrel-cage winding that allows direct-on-line asynchronous starting, automatically pulling into synchronous operation once near nominal speed.
Q3 How do Chinese exporters ensure high-voltage motor quality prior to shipment?
Rigorous factory acceptance testing (FAT) includes routine and type testing according to IEC 60034: winding resistance, no-load current/loss, locked-rotor torque, high-potential withstand voltage test, insulation resistance (IR) & Polarization Index (PI), vibration analysis, and partial discharge monitoring. FAT certificates and raw test data are provided prior to export dispatch.
Q4 How does field-weakening work in high-speed permanent magnet synchronous motors?
When motor speed exceeds base rated speed, back-EMF approaches inverter voltage limits. The VFD injects a negative d-axis demagnetizing current (\(I_d < 0\)) into the stator winding, effectively weakening the net rotor magnetic flux and enabling extended constant-power high-speed operation (e.g., up to 5,000 RPM in industrial HVAC fan motors).
Q5 What lead times should global buyers expect for custom high-voltage synchronous motors?
Standard low-voltage PMSM units (7.5 kW to 90 kW) are routinely stocked or manufactured within 15 to 20 days. Large custom high-voltage synchronous motors (1,600 kW to 3,150 kW+, 6kV/10kV) typically require 45 to 70 days for complete engineering design, VPI insulation treatment, precise dynamic balancing, and full FAT testing.
Q6 How to request custom shaft, flange, or mounting dimensions for OEM machinery?
To initiate custom design engineering, provide your existing motor nameplate, mechanical drawing (shaft diameter, keyway width, center height, bolt hole circle), electrical specifications (voltage, frequency, power, duty cycle), and cooling/IP rating. Our technical team generates 3D CAD models within 48 hours for verification.
Partner with China's Premier Synchronous Motor Exporter
Whether you require standard IE5 PMSM units, precision AC servos, or custom high-voltage synchronous excitation motors up to 25 MW, our engineering team is ready to support your technical specification, procurement budget, and global logistics requirement.
