In hazardous process manufacturing—ranging from petrochemical refining and offshore oil platforms to pharmaceutical synthesis cleanrooms and underground mining operations—combustible gases, vapors, and flammable dust poses constant operational risks. The procurement of CE Certified Ex d Flameproof Electric Motors represents a critical safety barrier. Under strict European ATEX Directive 2014/34/EU and international IEC 60079 series standards, Ex d flameproof motors are custom engineered to contain internal explosions without propagating flame or ignition sparks into the surrounding atmosphere.

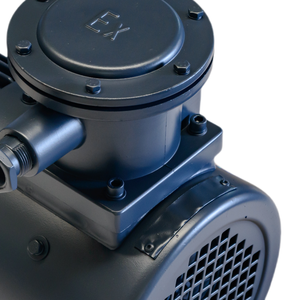

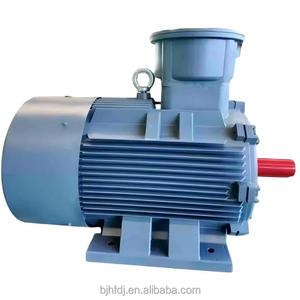

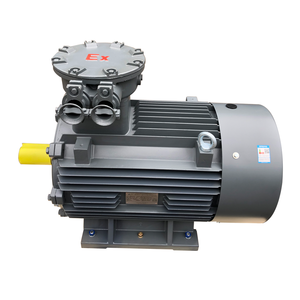

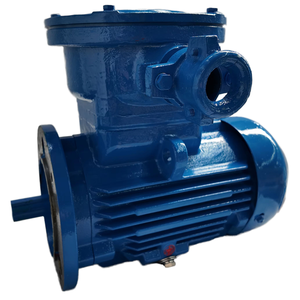

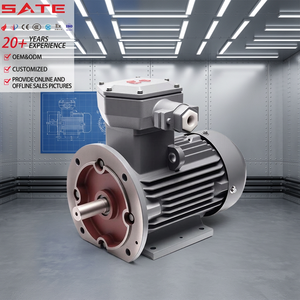

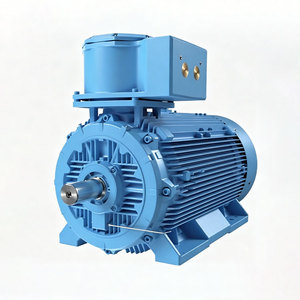

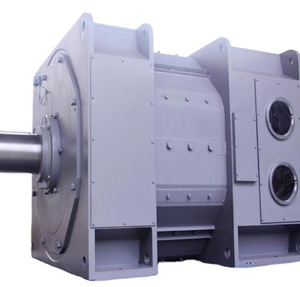

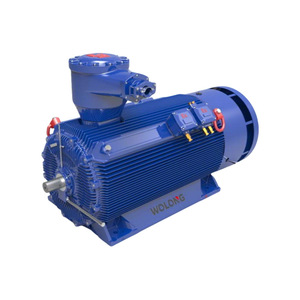

Browse our engineered selection of CE certified low and high voltage Ex d flameproof electric motors, custom industrial induction motors, and crane duty direct current drives.
Understanding the precise difference between explosion protection types is essential for plant engineering safety directors and procurement specialists.
Unlike "Increased Safety" (Ex e) or "Non-sparking" (Ex ec) motors—which focus strictly on preventing any electrical arc or elevated surface temperature—an Ex d Flameproof Electric Motor is specifically constructed to withstand an internal explosion of combustible gas or vapor that may enter the enclosure during lifecycle operation. The primary design objective is to cool escaping explosion products across precision-machined joints (flamepaths or flame gaps) so that by the time internal pressure escapes to the external environment, the gas temperature has dropped far below the ignition threshold of surrounding ambient hazards.
| Explosion Protection Class | Gas Group Compatibility | Target Hazardous Zones | Enclosure Design Requirement | Typical Industrial Applications |
|---|---|---|---|---|
| Ex d IIA T4 Gb | Group IIA (Propane, Methane, Ammonia) | Zone 1 & Zone 2 (Gas) | Standard flamepath gaps, cast iron case | Cleanrooms, General Chemical Processing, Pharma |
| Ex d IIB T4 / T5 Gb | Group IIB (Ethylene, Town Gas, Coke Oven) | Zone 1 & Zone 2 (Gas) | Tight flamepath tolerance (<0.20mm), heavy casing | Offshore Rigs, Crude Refineries, Pipeline Pumps |
| Ex d IIC T4 / T6 Gb | Group IIC (Hydrogen, Acetylene, Carbon Disulfide) | Zone 1 & Zone 2 (Gas) | Ultra-precision ground thread/spigot flamepath | Hydrogen Refueling, Acetylene Plants, Chemical Labs |
| Ex tb / Ex tc IIIC | Combustible Dusts (Flyings, Non-conductive) | Zone 21 & Zone 22 (Dust) | IP65/IP66 enclosure seals, thermal limiting | Grain Handling, Coal Dust Processing, Sugar Mills |
Combining nearly a century of industrial engineering legacy with state-of-the-art testing infrastructure and rapid custom manufacturing response times.
Drawing from German motor engineering principles established since 1927, our custom motors are crafted to outperform standard mass-produced alternatives in high-vibration, corrosive, and heavy-duty industrial environments.
Every Ex d flameproof motor undergoes stringent quality verification. Our state-of-the-art testing center facilitates full-load thermal runs, vibration spectrum analysis, partial discharge testing, and explosion overpressure validation under customer observation.
We hold one of the industry's most comprehensive stocks of large low- and high-voltage motors, enabling emergency replacement within 24 to 72 hours for urgent facility downtime recovery.
Full compliance with CE marking, ATEX Directive 2014/34/EU, IECEx international safety certificates, EAC (Eurasian Conformity), and ISO 9001/14001 integrated management systems.
Ability to manufacture exact dimensional replicas of obsolete or legacy motor brands (including special flange mounts, custom shaft extension lengths, and flexible terminal box positions).
Our global field service engineers provide on-site technical support, vibration monitoring, commissioning assistance, and flameproof enclosure maintenance training globally.
Macro-environmental developments shaping the selection, specification, and maintenance of explosion-proof industrial drives over the next decade.
Global energy efficiency directives—such as the European Union’s Ecodesign Regulation (EU 2019/1781)—have expanded mandatory minimum efficiency requirements to include explosion-proof motors. Historically exempt due to heavy cast-iron thermal dissipation constraints, modern Ex d flameproof motors are now required to meet IE3 Premium Efficiency and increasingly IE4 Super Premium ratings. Manufacturers achieve this by adopting higher-grade electromagnetic copper windings, low-loss electrical steel laminations, and fluid-dynamically optimized internal cooling fans.
The adoption of Industrial Internet of Things (IIoT) sensors for predictive maintenance is rapidly reshaping hazardous area motor management. Procurement officers are specifying Ex d motors pre-fitted with intrinsically safe (Ex i) or flameproof (Ex d) wireless vibration, temperature, and magnetic flux sensors. Real-time data streams empower plant managers to detect bearing wear, winding insulation decay, or shaft misalignment months before catastrophic failure occurs, shifting operations from reactive repairs to optimized continuous uptime.
Modern heavy industrial processes increasingly pair Ex d motors with Variable Frequency Drives to achieve precise speed regulation and energy savings. However, high-frequency voltage spikes (dv/dt) generated by modern IGBT inverters can cause electrical stress and premature insulation degradation. Future-proof Ex d motors incorporate insulated non-drive end (NDE) bearings, reinforced slot insulation, and integrated thermal sensors (PT100 / PTC thermistors) certified under ATEX/IECEx specifically for inverter-fed operations across the entire torque spectrum.
With worldwide investment accelerating in green hydrogen production, fuel cell processing, and synthetic fuel refitting, demand for Gas Group IIC flameproof motors (the highest protection level capable of containing hydrogen-air explosive mixtures) is surging. Procurement trends reflect a strategic shift toward specifying IIC rated motors for new chemical infrastructure to ensure compliance with future process fluids and hydrogen-blend feedstocks.
Answers to technical and commercial queries commonly encountered during Ex d flameproof motor sourcing.
Our senior electrical engineering team is available 24/7 to assist with technical motor sizing, rating plate verification, dimensional cross-referencing, and custom quote generation for your hazardous area projects.
